实现 思维导图大纲 工具
分类：general ｜ 标签：思维导图、大纲、结构 缩进大纲转树形/Markdown
2.1 功能说明
缩进大纲转树形/Markdown
2.1.1 使用指南
功能说明
将缩进式大纲文本（用 Tab/空格表示层级）转换为可折叠的树形结构，也可导出 Markdown。新增「可视化思维导图」：将缩进大纲渲染成可交互的树状思维导图（自渲染 SVG，不依赖第三方库），支持节点折叠/展开、双击改名，并可导出 SVG / PNG / Markdown。
使用场景
整理思路、会议记录结构化、知识梳理与脑图绘制。
操作提示
缩进规则：以 Tab 或空格（按 4 空格=1 级）表示层级。在「可视化思维导图」中，点击节点右侧的 +/− 可折叠/展开子节点；双击节点文字可改名；右上角滑块可缩放视图。
2.2 代码实现
2.2.1 组件结构
本工具是一个基于 Vue 3 <script setup> 语法的单文件组件（SFC），统一包裹在 ToolPageShell 组件内，由它提供页面标题、工具 ID、分类与「使用指南」插槽等通用外壳；核心业务逻辑（响应式状态、计算属性、事件处理函数）全部写在 <script setup> 中，输入/输出通过 el-input、el-button 等 Element Plus 组件与用户交互，所有数据均在浏览器本地处理，不会上传服务器。
2.2.2 核心逻辑概览
<script setup> 中定义的主要函数/方法：
indent()assignIds()build()loadSample()clear()nodeWidth()walk()color()toggle()expandAll()collapseAll()rename()toMd()copyMd()saveBlob()downloadMd()serializeSvg()exportSvg()exportPng()
2.2.3 关键实现代码
以下是该工具的完整 <script setup> 实现（核心代码）。模板（<template>）与样式（<style>）已省略。
vue
import { ref, reactive, computed, h } from 'vue'
import { ElMessage } from 'element-plus'
import ToolPageShell from '@/components/ToolPageShell.vue'
const src = ref('')
const tree = ref(null)
const innerTab = ref('tree')
const zoom = ref(1)
const svgRef = ref(null)
const mmWrap = ref(null)
const collapsed = reactive(new Set())
const nodeMap = {}
let idCounter = 0
const nodeH = 30
const ROW_H = 42
const COL_W = 210
const PALETTE = ['#e8f3ff', '#e6fffb', '#f9f0ff', '#fff7e6', '#f6ffed', '#fff1f0', '#f0f5ff', '#fcffe6']
// 递归树节点（HTML 树形大纲用）
const TreeNode = {
props: { node: Object },
setup(props) {
const open = ref(true)
return () => {
const n = props.node
const hasChildren = n.children && n.children.length
return h('li', {}, [
h('div', { class: 'node', onClick: () => { if (hasChildren) open.value = !open.value } },
[hasChildren ? h('span', { class: 'caret' }, open.value ? '▾' : '▸') : h('span', { class: 'caret' }, '•'), n.text]),
hasChildren && open.value ? h('ul', {}, n.children.map(c => h(TreeNode, { node: c }))) : null
])
}
}
}
function indent(line) {
const m = line.match(/^\s*/)[0]
return { level: m.replace(/\t/g, ' ').length, text: line.trim() }
}
function assignIds(node) {
node.id = ++idCounter
nodeMap[node.id] = node
node.children.forEach(assignIds)
return node
}
function build() {
tree.value = null
for (const k in nodeMap) delete nodeMap[k]
collapsed.clear()
const lines = src.value.split('\n').filter(l => l.trim())
if (!lines.length) return
const roots = [], stack = []
for (const l of lines) {
const { level, text } = indent(l)
const node = { text, children: [] }
while (stack.length && stack[stack.length - 1].level >= level) stack.pop()
if (!stack.length) roots.push(node)
else stack[stack.length - 1].node.children.push(node)
stack.push({ level, node })
}
const root = roots.length === 1 ? roots[0] : { text: '根', children: roots }
assignIds(root)
tree.value = root
}
function loadSample() {
src.value = [
'项目计划',
' 需求分析',
' 用户访谈',
' 竞品调研',
' 设计',
' UI 设计',
' 交互原型',
' 开发',
' 前端',
' 后端',
' 测试与上线'
].join('\n')
build()
}
function clear() { src.value = ''; tree.value = null; for (const k in nodeMap) delete nodeMap[k]; collapsed.clear() }
function nodeWidth(t) { return Math.min(240, Math.max(64, t.length * 13 + 26)) }
// 计算布局（左→右树），仅展开未被折叠的节点
const layout = computed(() => {
if (!tree.value) return null
const nodes = [], links = []
let leafY = 0
function walk(node, depth) {
const w = nodeWidth(node.text)
const x = depth * COL_W
const visible = (node.children && node.children.length && !collapsed.has(node.id)) ? node.children : []
let y
if (!visible.length) {
y = leafY * ROW_H + ROW_H / 2
leafY++
} else {
const ys = visible.map(c => walk(c, depth + 1))
y = (ys[0] + ys[ys.length - 1]) / 2
visible.forEach((c, i) => {
links.push({ x1: x + c._pW, y1: y, x2: c._pX, y2: c._pY })
})
}
node._pX = x
node._pY = y
node._pW = w
nodes.push({ id: node.id, text: node.text, x, y, w, depth, hasChildren: !!(node.children && node.children.length), collapsed: collapsed.has(node.id) })
return y
}
walk(tree.value, 0)
const maxX = Math.max(...nodes.map(n => n.x + n.w))
const width = maxX + 30
const height = Math.max(leafY * ROW_H, 120) + 20
return { nodes, links, width, height }
})
function color(depth) { return PALETTE[depth % PALETTE.length] }
function toggle(n) {
if (!n.hasChildren) return
if (collapsed.has(n.id)) collapsed.delete(n.id)
else collapsed.add(n.id)
}
function expandAll() { collapsed.clear() }
function collapseAll() {
if (!tree.value) return
// 折叠所有含子节点的节点（保留根展开一层较为直观：折叠根以下所有非叶子）
const walk = (node) => {
if (node.children && node.children.length) {
// 根节点本身不折叠，方便查看
if (node !== tree.value) collapsed.add(node.id)
node.children.forEach(walk)
}
}
walk(tree.value)
}
function rename(id) {
const node = nodeMap[id]
if (!node) return
const v = window.prompt('修改节点文字', node.text)
if (v != null && v.trim()) node.text = v.trim()
}
function toMd(node, d = 0) {
let s = ' '.repeat(d) + '- ' + node.text + '\n'
for (const c of (node.children || [])) s += toMd(c, d + 1)
return s
}
function copyMd() {
if (!tree.value) return
const md = toMd(tree.value)
if (navigator.clipboard?.writeText) navigator.clipboard.writeText(md)
else ElMessage.warning('当前环境不支持自动复制')
}
function saveBlob(blob, name) {
const a = document.createElement('a')
a.href = URL.createObjectURL(blob)
a.download = name
document.body.appendChild(a)
a.click()
a.remove()
setTimeout(() => URL.revokeObjectURL(a.href), 1000)
}
function downloadMd() {
if (!tree.value) return
saveBlob(new Blob([toMd(tree.value)], { type: 'text/markdown;charset=utf-8' }), 'mindmap.md')
}
function serializeSvg() {
const svg = svgRef.value
if (!svg) return null
const clone = svg.cloneNode(true)
clone.setAttribute('width', layout.value.width)
clone.setAttribute('height', layout.value.height)
clone.removeAttribute('style')
clone.setAttribute('xmlns', 'http://www.w3.org/2000/svg')
return '<?xml version="1.0" encoding="UTF-8"?>\n' + new XMLSerializer().serializeToString(clone)
}
function exportSvg() {
const str = serializeSvg()
if (!str) return
saveBlob(new Blob([str], { type: 'image/svg+xml;charset=utf-8' }), 'mindmap.svg')
}
function exportPng() {
const str = serializeSvg()
if (!str) return
const blob = new Blob([str], { type: 'image/svg+xml;charset=utf-8' })
const url = URL.createObjectURL(blob)
const img = new Image()
img.onload = () => {
const scale = 2
const canvas = document.createElement('canvas')
canvas.width = layout.value.width * scale
canvas.height = layout.value.height * scale
const ctx = canvas.getContext('2d')
ctx.fillStyle = '#ffffff'
ctx.fillRect(0, 0, canvas.width, canvas.height)
ctx.drawImage(img, 0, 0, canvas.width, canvas.height)
canvas.toBlob(b => {
if (b) saveBlob(b, 'mindmap.png')
else ElMessage.error('PNG 导出失败')
URL.revokeObjectURL(url)
}, 'image/png')
}
img.onerror = () => { ElMessage.error('PNG 导出失败'); URL.revokeObjectURL(url) }
img.src = url

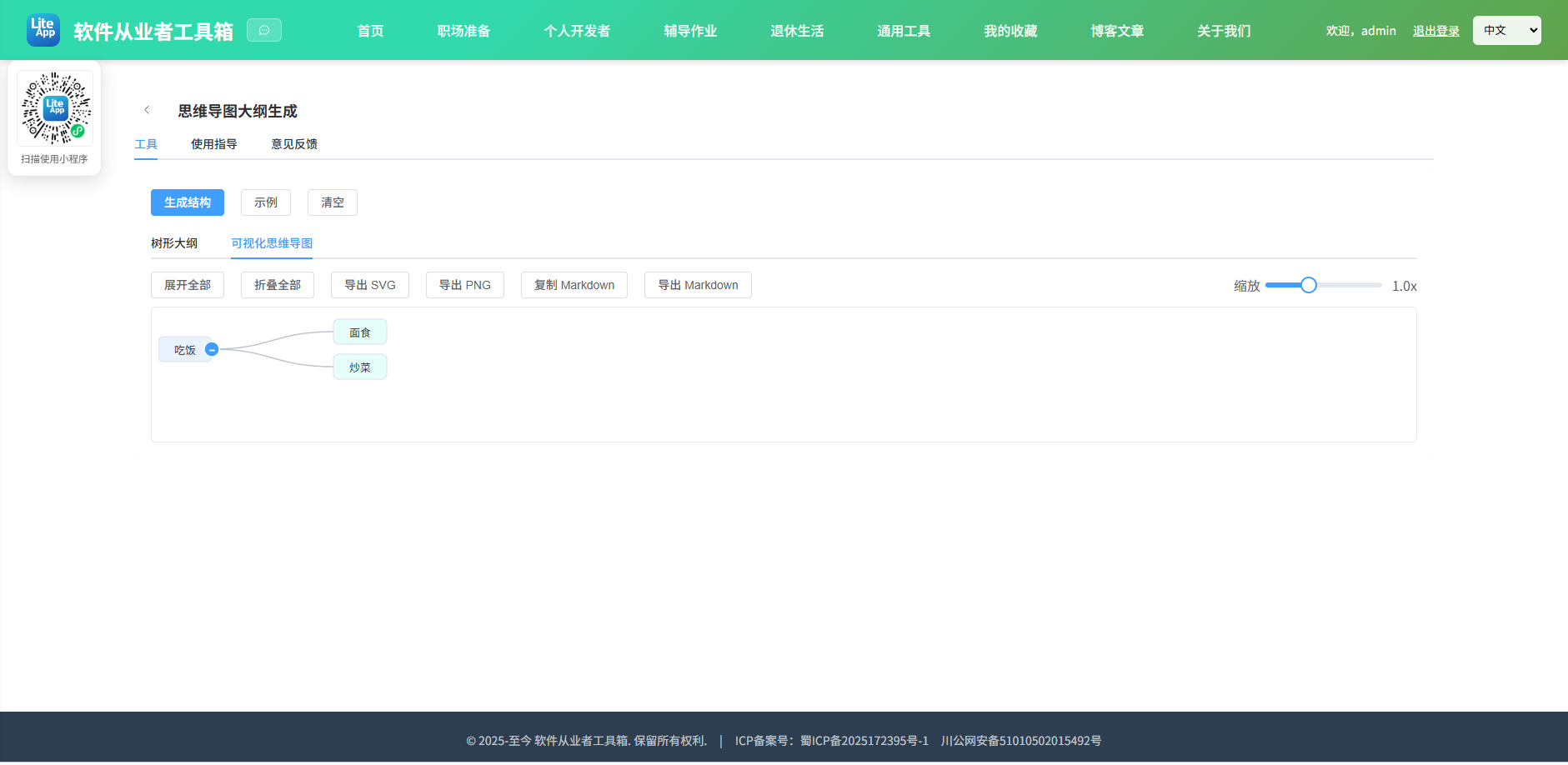

}2.3 效果截图
